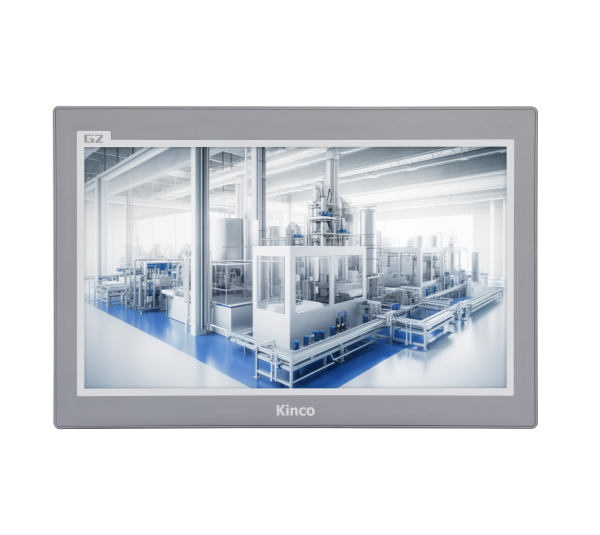

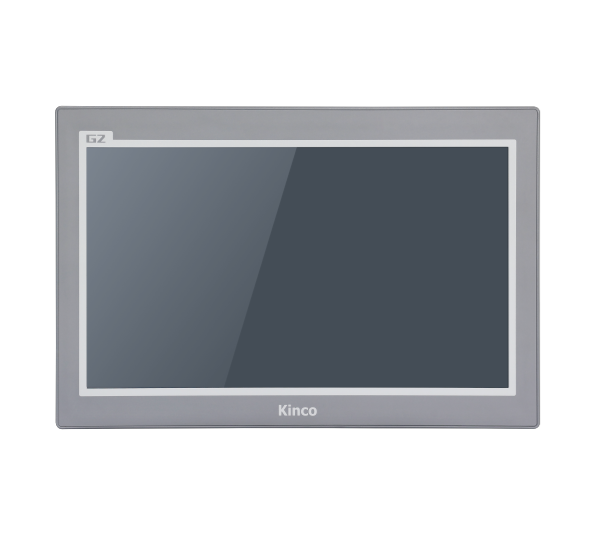

G2156E2
⁦G2156E2⁩ - الصورة ⁦2⁩
advanced touchscreen panel 640 x 480 pixels VGA- 10.4" TFT - 96 MB
advanced touchscreen panel 640 x 480 pixels VGA- 10.4" TFT - 96 MB EGP 0
Back to products
DOP-103BQ | Touchscreen, 4.3″ TFT LCD, Basic HMI,Color, 1 COM
DOP-103BQ | Touchscreen, 4.3″ TFT LCD, Basic HMI,Color, 1 COM EGP 0

G2156E2

EGP 0

Performance Specification
Display size               15.6″ TFT
Display area      344.16mm(W)x193.59mm(H)
Resolution              1920*1080px
Display                 color16.7M
Visual angle     80/80/80/80(L/R/U/D)
Contrast                    1000:1
Backlight                     LED
Luminance               250cd/m²
LCD life               ＞20000 hours
Touch panel    4 line precision resistance network（surface hardness 3H）
CPU                                Quad-core 1.5GHz
Memory               4GB Flash Memory+512MB Memory
RTC                                     Built-in
External storage                1 USB Host
Printer port                  USB Host/Serial port
EthernetLAN0:         10/100 Mbps; LAN1:10/100 Mbps
Program download Ethernet         port/USB Slave/U disk
Communication         COM0:RS232/RS485/RS422;COM2:RS232;
