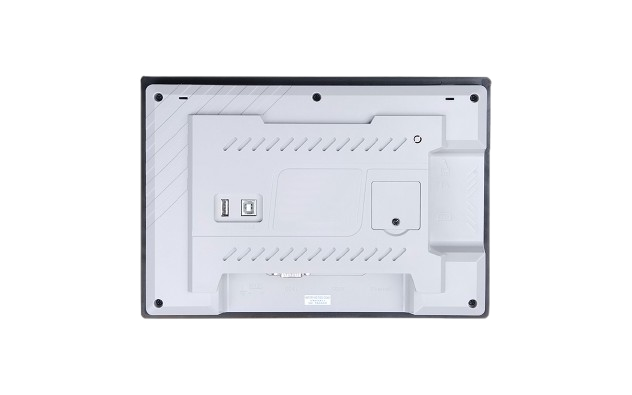

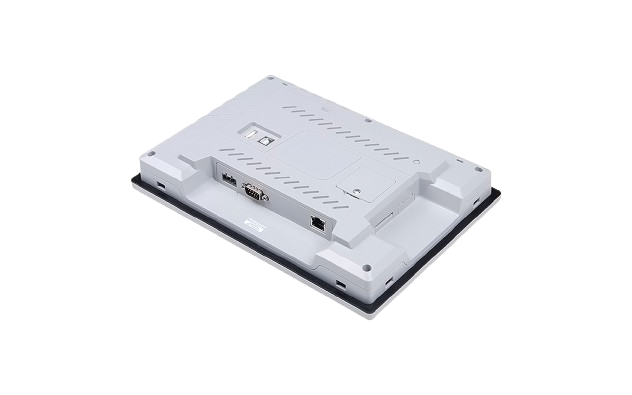

10.1inch PI8102ig HMI
EGP 0
Motherboard specifications: Quad core high performance CPU comes with a 4G Flash/512M RAM memory
Display: 10.1 inch; Resolution: 1024*600
Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port
Download methods: USB download cable, USB flash drive download, LAN download, remote download
DATA SHEET
