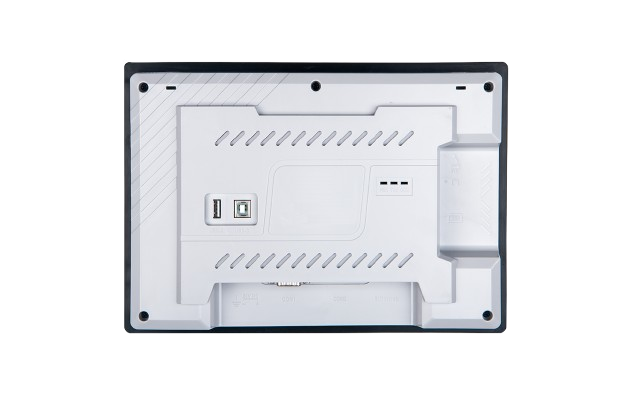

10.1inch PI3102ie HMI
EGP 0
Motherboard specifications: Quad core high performance CPU comes with 128M Flash/64M RAM memory
Display: 10.1 inch; Resolution: 1024*600
Interfaces: COM1: RS232, RS422/RS485
Download methods: USB download cable, USB flash drive download
DATA SHEET
