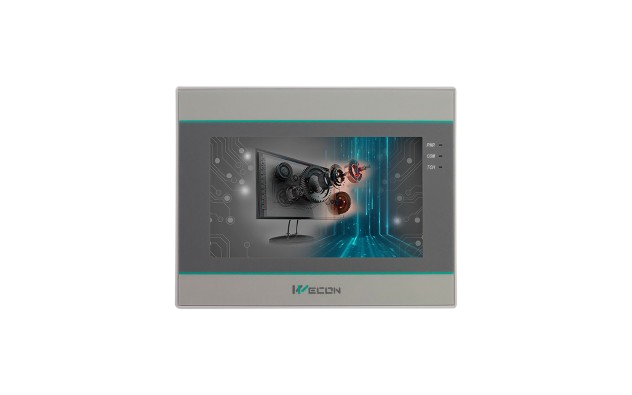

4.3inch PI3041ig(N) HMI
EGP 0
Motherboard specifications: Quad core high performance CPU comes with a 128M Flash/128M RAM memory
Display: 4.3 inch; Resolution: 480*272
Interfaces: COM1: RS232, RS422/RS485, RS485; Dual Ethernet ports
Download methods: USB download cable, USB flash drive download, LAN download, remote download
DATA SHEET
منتجات ذات صلة
4.3 Inch Cheap HMI with Shell LCD DMG48270C043_15WTR (commercial grade)
7 Inch HMI TFT LCD OTA and USB Drive Update Model: DMG80480T070_15WTRU(Industrial Grade)
Features
Powered by T5L1 ASIC, running DGUS II HMI platform, industrial-grade smart LCM
7.0 inch, 800*480 resolution, TN-TFT LCD
RS232/RS485, 6Pin_3.81mm connection wire
Download Ways : SD card or on-line serial port
Power supply：Default is 9~36V, 12V as default
With built-in speaker, LED lamp and Photosensitive sensor, With conformal coating, with enclosure
On-board WiFi module and USB download interface, support high-speed WiFi OTA updates and updates via USB flash drive download
DATA SHEET dmg80480t070_15wtru_datasheet-1
7 Inch UART LCD Model: DMG80480T070_15WTRIOT(Industrial Grade)
Features
Equipped with WI-FI 20, Support server/backend management customization function
DATA SHEET dmg80480t070_15wtriot_datasheet-1 (2)
7.0 Inch With Shell HMI Display DMG80480C070_15WTR(commercial grade)
DWIN 800*RGB*480, Smart LCM
Features
800*480 resolution, 262K colors, TN-TFT-LCD
Resistive touch screen
RS232 and RS485 Interface, 8Pin3.81mm Socket connection wire
Download via SD card or on-line serial port 8MBytes NOR Flash, for fonts, pictures and audio files
Brightness is up to 200nit
TN View Angle: 70/70/50/70 (L/R/U/D)
DATA SHEET
CS-M234120WP NEMA34 High Speed Closed Loop Stepper Motor – Waterproof IP65 ماتور ستيبر بالانكودر 12 نيوتن معزول مياة واتربة
The CS-M series closed loop stepper motors are integrated with a 1,000-line (4,000 counts/revolution) or 5,000-line （20,000 counts/revolution） differential-ended rotary encoder. Built with high-quality materials including bearings and shafts made by famous manufacturers, this closed-loop stepper motor can be adopted in many industrial applications with excellent performance such as high precision, low motor heating, and low vibration.
Features2 phase, NEMA 34 frame size
164 mm (6.46 inch) long
6 A phase current
12 N.m (1700 oz-in) holding torque
14 mm (0.551 inch) shaft size
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder
High precision, low motor heating, and low vibration
Technical Data
Model CS-M234120WP
Series CS-M
Phase 2 phase
Frame Size (NEMA) 34
Length (mm) 164
Holding Torque (N.m) 12
Phase Current (A) 6.0
Shaft Diameter (mm) 14
Center Diameter (mm) 60
IP Rate IP65
Characteristics Waterproof
Resistance (Ohm) 0.75
Inductance (mH) 5.5
Inertia (kg/cm2) 3
Weight（kg） 4.8
