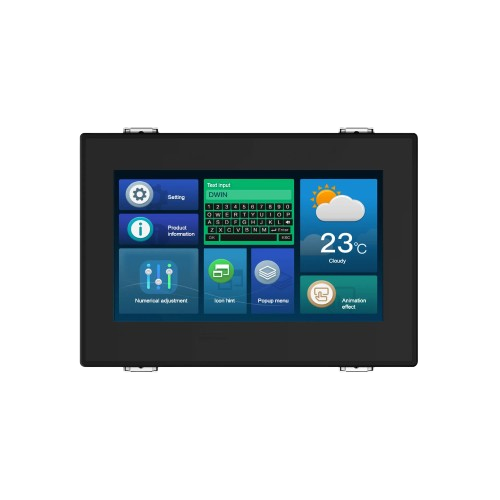

7.0 Inch With Shell HMI Display DMG80480C070_15WTR(commercial grade)
EGP 0
DWIN 800*RGB*480, Smart LCM
Features
800*480 resolution, 262K colors, TN-TFT-LCD
Resistive touch screen

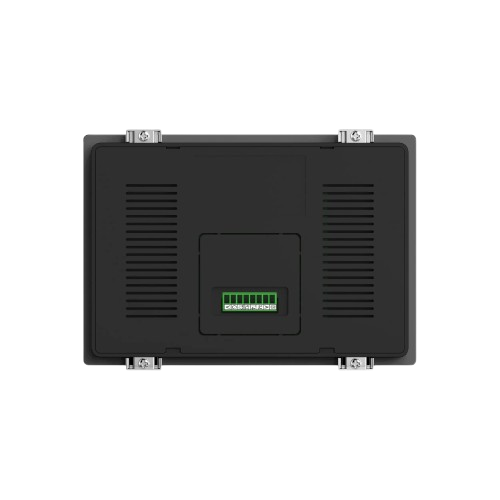

RS232 and RS485 Interface, 8Pin3.81mm Socket connection wire
Download via SD card or on-line serial port 8MBytes NOR Flash, for fonts, pictures and audio files
Brightness is up to 200nit
TN View Angle: 70/70/50/70 (L/R/U/D)
DATA SHEET
