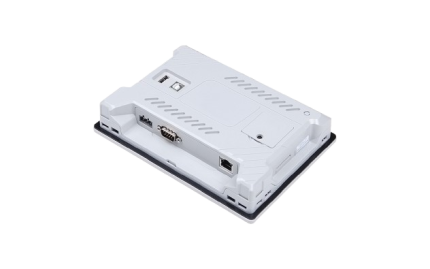

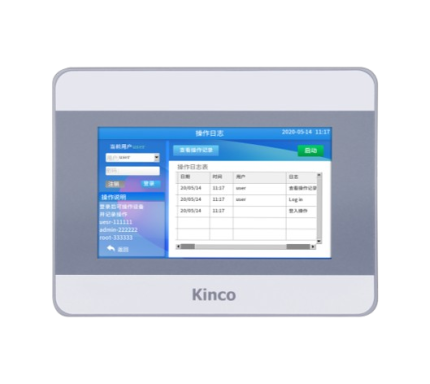

Motherboard specifications: Quad core high performance CPU comes with a 4G Flash/512M RAM memory

Display: 10.1 inch; Resolution: 1024*600

Interfaces: COM1: RS232, RS422/RS485, RS485; Dual Ethernet ports

Download methods:  USB download cable, USB flash drive download, LAN download, remote download

DATA SHEET

download (1)

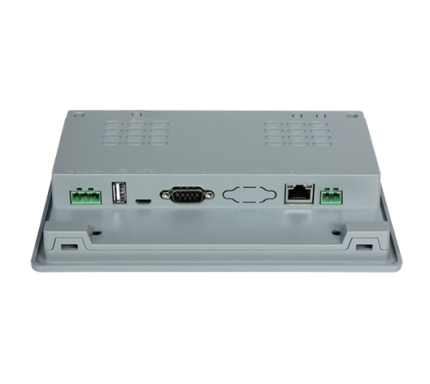

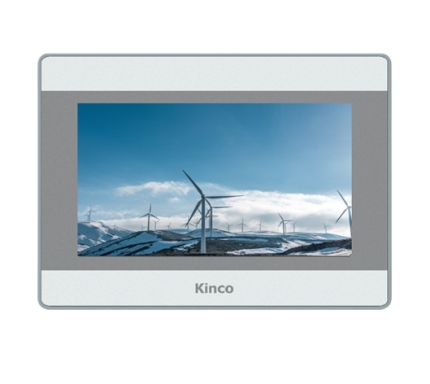

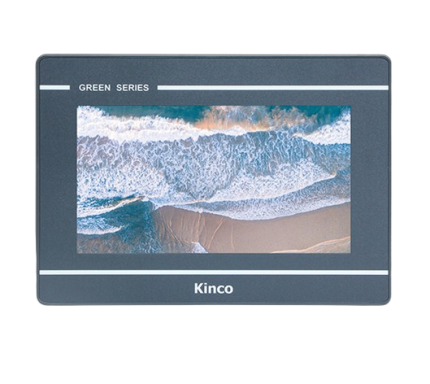

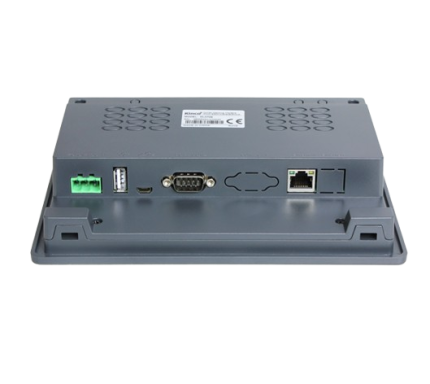

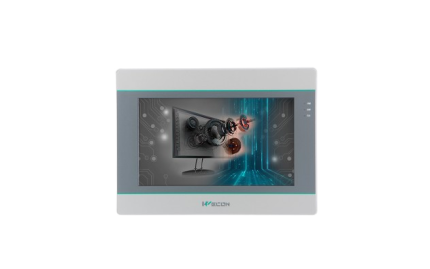

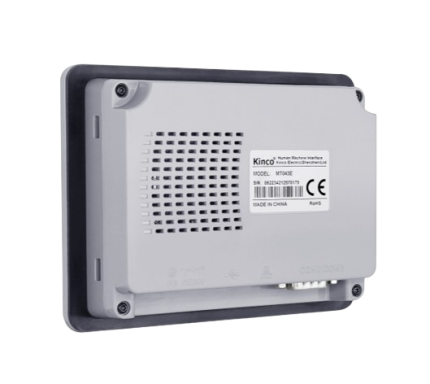

Motherboard specifications: Quad core high performance CPU comes with a 4G Flash/512M RAM memory

Display: 7 inch; Resolution: 800*480

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port

Download methods: USB download cable, USB flash drive download, LAN download, remote download

DATA SHEET

67cbf9505d0be

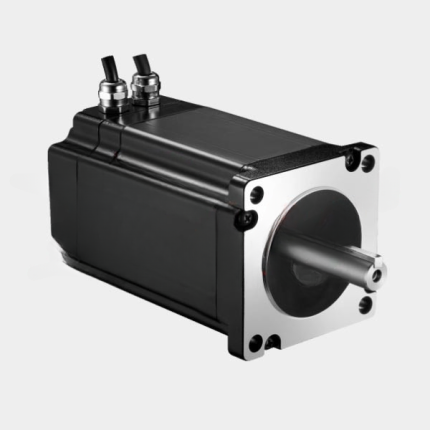

The CS-M series closed loop stepper motors are integrated with a 1,000-line (4,000 counts/revolution) or 5,000-line （20,000 counts/revolution） differential-ended rotary encoder. Built with high-quality materials including bearings and shafts made by famous manufacturers, this closed-loop stepper motor can be adopted in many industrial applications with excellent performance such as high precision, low motor heating, and low vibration.

2 phase, NEMA 34 frame size

164 mm (6.46 inch) long

6 A phase current

12 N.m (1700 oz-in) holding torque

14 mm (0.551 inch) shaft size

Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder

High precision, low motor heating, and low vibration

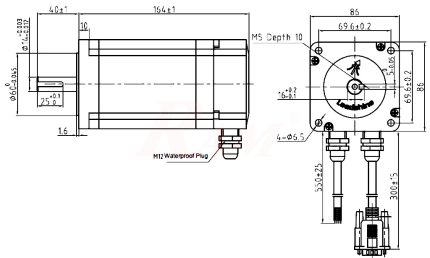

Technical Data

Model CS-M234120WP

Series CS-M

Phase 2 phase

Frame Size (NEMA) 34

Length (mm) 164

Holding Torque (N.m) 12

Phase Current (A) 6.0

Shaft Diameter (mm) 14

Center Diameter (mm) 60

IP Rate IP65

Characteristics Waterproof

Resistance (Ohm) 0.75

Inductance (mH) 5.5

Inertia (kg/cm2) 3

Weight（kg） 4.8
