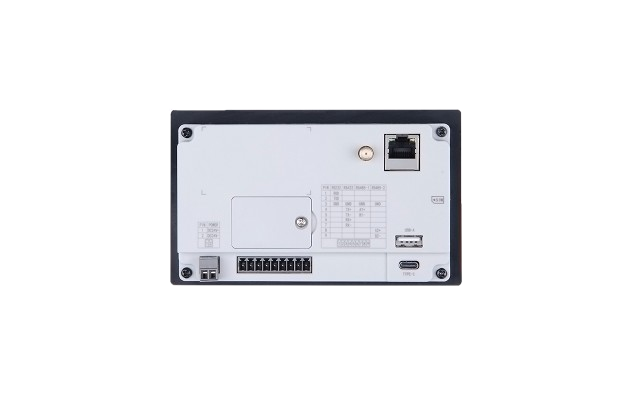

4.3inch PI3043ig-C HMI
EGP 0
Motherboard specifications: Quad core high performance CPU comes with a 128M Flash/128M RAM memory
Display: 4.3 inch; Resolution: 480*272
Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port
Download methods: USB download cable, USB flash drive download, LAN download, remote download
DATA SHEET
