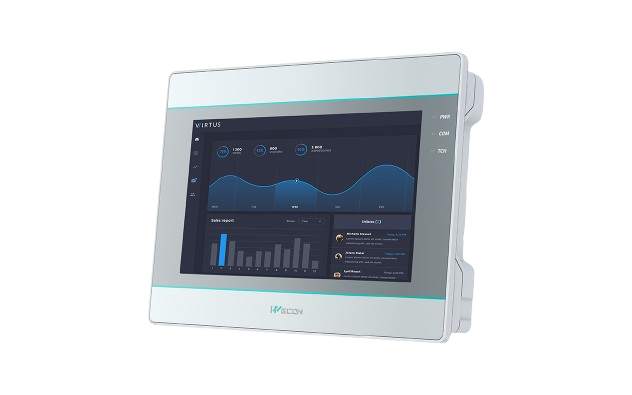

7inch PI3070ie HMI

Motherboard specifications: Quad core high performance CPU comes with a 128M Flash/128M RAM memory

Display: 4.3 inch; Resolution: 480*272

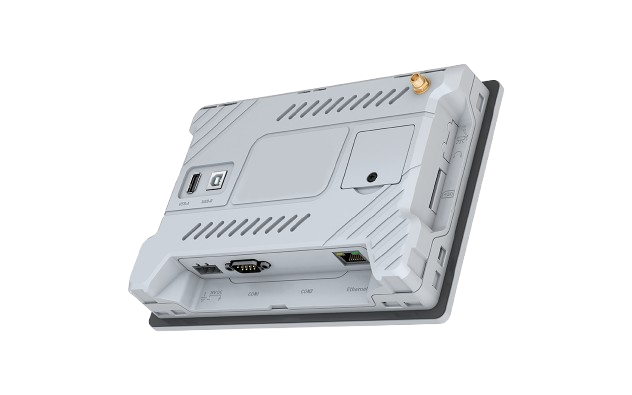

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port

Download methods: USB download cable, USB flash drive download, LAN download, remote download

DATA SHEET

691d39f95973d

Motherboard specifications: Quad core high performance CPU comes with a 128M Flash/128M RAM memory.

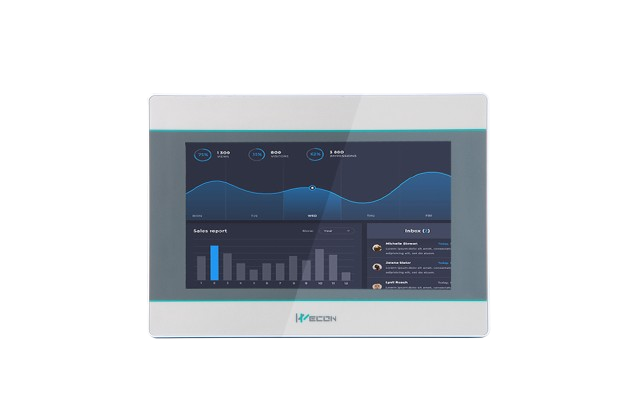

Display: 7 inch; Resolution: 800*480

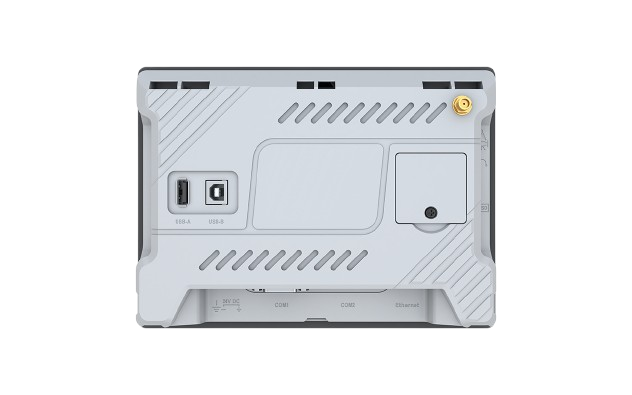

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port.

Download methods:  USB download cable, USB flash drive download, LAN download, remote download.

DATA SHEET

67cbe3152982a

The CS-M series closed loop stepper motors are integrated with a 1,000-line (4,000 counts/revolution) or 5,000-line （20,000 counts/revolution） differential-ended rotary encoder. Built with high-quality materials including bearings and shafts made by famous manufacturers, this closed-loop stepper motor can be adopted in many industrial applications with excellent performance such as high precision, low motor heating, and low vibration.

2 phase, NEMA 34 frame size

164 mm (6.46 inch) long

6 A phase current

12 N.m (1700 oz-in) holding torque

14 mm (0.551 inch) shaft size

Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder

High precision, low motor heating, and low vibration

Technical Data

Model CS-M234120WP

Series CS-M

Phase 2 phase

Frame Size (NEMA) 34

Length (mm) 164

Holding Torque (N.m) 12

Phase Current (A) 6.0

Shaft Diameter (mm) 14

Center Diameter (mm) 60

IP Rate IP65

Characteristics Waterproof

Resistance (Ohm) 0.75

Inductance (mH) 5.5

Inertia (kg/cm2) 3

Weight（kg） 4.8

Download

DATASHEET
