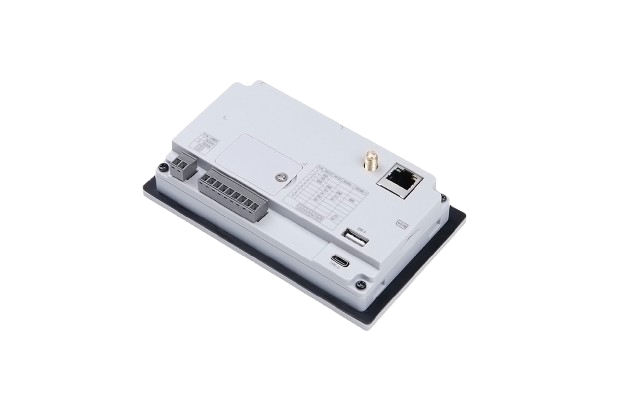

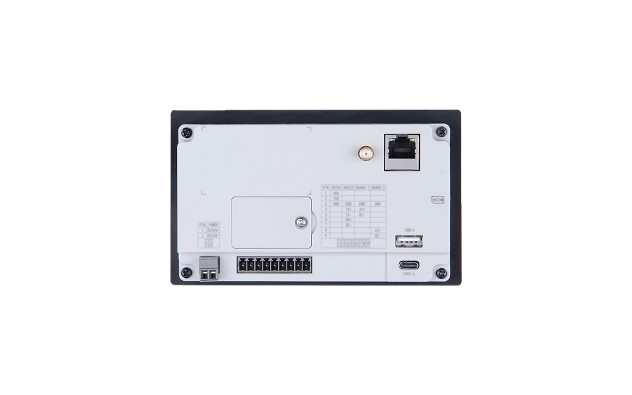

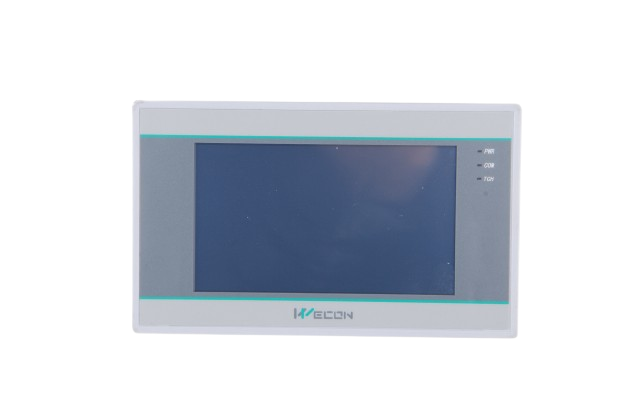

4.3inch PI8043ig HMI

Features

Motherboard specifications: Quad core high performance CPU comes with a 128M Flash/128M RAM memory.

Display: 7 inch; Resolution: 800*480

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port.

Download methods:  USB download cable, USB flash drive download, LAN download, remote download.

DATA SHEET

67cbe3152982a

Motor Features

2 phase, NEMA 34 frame size

126 mm long

6 A phase current

8 N.m holding torque

14 mm shaft size

Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder

High precision, low motor heating, and low vibration

Build with high quality materials including bearings and shaft made by Japanese manufacturers.

This closed loop stepper motor can be adopted in many industrial applications with excellent performance such as high precision, low motor heating, and low vibration.

Motor Parameters:

Model: CS-M23480

Frame Size: NEMA 34

Phase: 2

Step Angle: 1.8°

Accuracy: ±0.9°

Length: 126 mm (4.96 inch)

Number of Wires: 4

Holding Torque: 8N.m (1133 oz-in)

Phase Current: 6 A/Phase

Encoder Resolution: 1000 Line (4000 counts/per revolution)

Voltage: 3.8 V

Resistance: 0.63 Ω

Inductance: 4 mH

Rotor Inertia: 2.5 kg-cm2 (0.0354 oz-in-sec2 )

Shaft Size: 14 mm (0.551 inch)

Shaft Type: Single

Weight: 3.5 kg (7.71 lb)

Insolation Class: B

Insolation resistance: Min 100 MΩ,500 VDC)

Operating Temperature: -10 - 50°C (14 - 122°F)

Temperature Rise (Max): 80K

Radial Play: Max 0.02 mm with 450g load

Axial Play: Max 0.08 mm with 900g load
