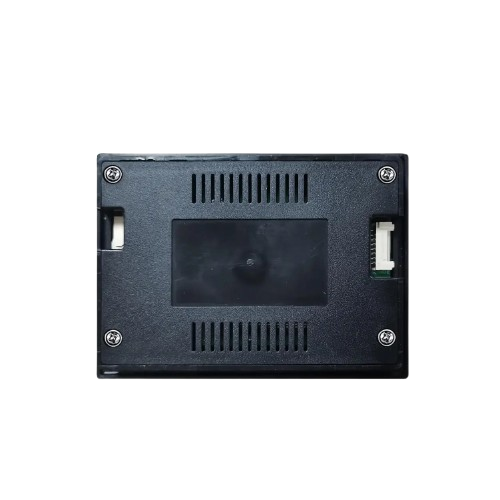

4.3 Inch Cheap HMI with Shell LCD DMG48270C043_15WTR (commercial grade)
EGP 0
DWIN 480*RGB*272, UART Display
Features
480*272 resolution, 262K colors
Resistive touch screen
RS232 and RS485 Interface, 8Pin2.0mm connection wire
Download via SD card or on-line serial port8MBytes NOR Flash, for fonts, pictures and audio files
Brightness is up to 250nit
DATA SHEET
