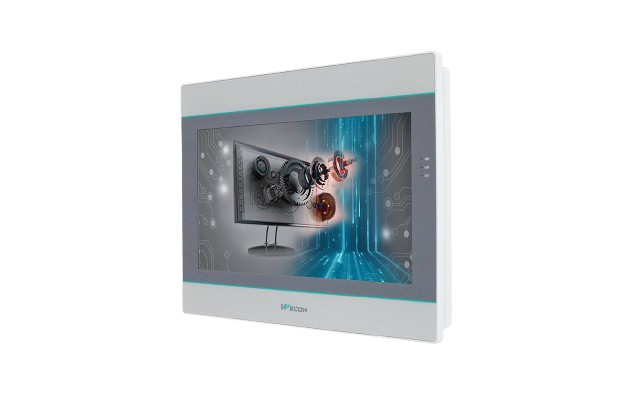

10.1inch PI8101ig(N) HMI

Motherboard specifications: Quad core high performance CPU comes with a 4G Flash/512M RAM memory

Display: 10.1 inch; Resolution: 1024*600

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port

Download methods: USB download cable, USB flash drive download, LAN download, remote download

DATA SHEET

67cbfab76beea

Motherboard specifications: Quad core high performance CPU comes with a 4G Flash/512M RAM memory

Display: 4.3 inch; Resolution: 480*272

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port

Download methods: USB download cable, USB flash drive download, LAN download, remote download

DATA SHEET

6890090e732a3

Motherboard specifications: Quad core high performance CPU comes with a 4G Flash/512M RAM memory

Display: 7 inch; Resolution: 800*480

Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port

Download methods: USB download cable, USB flash drive download, LAN download, remote download

Support IP Camera, 2 Ethernet Port

DATA SHEET

download

Description This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed
