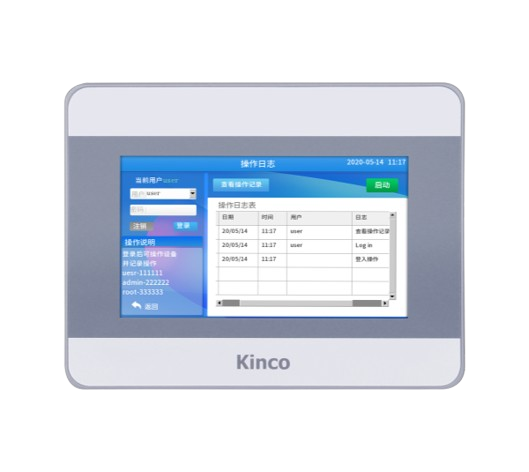

MT043E
EGP 0
Performance Specification
Display size 4.3″ TFT
Resolution 480*272 px
Display color256K color
Visual angle 70/70/50/70(left/right/up/down)
Backlight LED
Luminance 450cd/m²
LCD life 50000 hours
Touch panel 4-wire precision resistance network (surface hardness 4H)
CPUARM RISC 32Bit 792MHz
Memory 128MB Flash Memory+64MB Memory
RTC Built-in
External storage 1 USB Host
Printer port USB Host/Serial port
Ethernet 10/100M adaptable Ethernet interface
Program download USB Slave(Micro USB)/Serial port
Communication COM0:RS232/RS485/RS422; COM2:RS232
